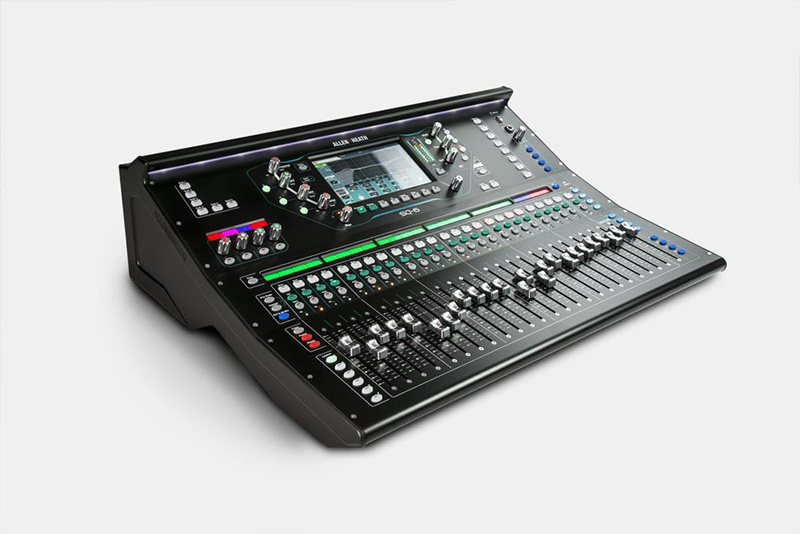

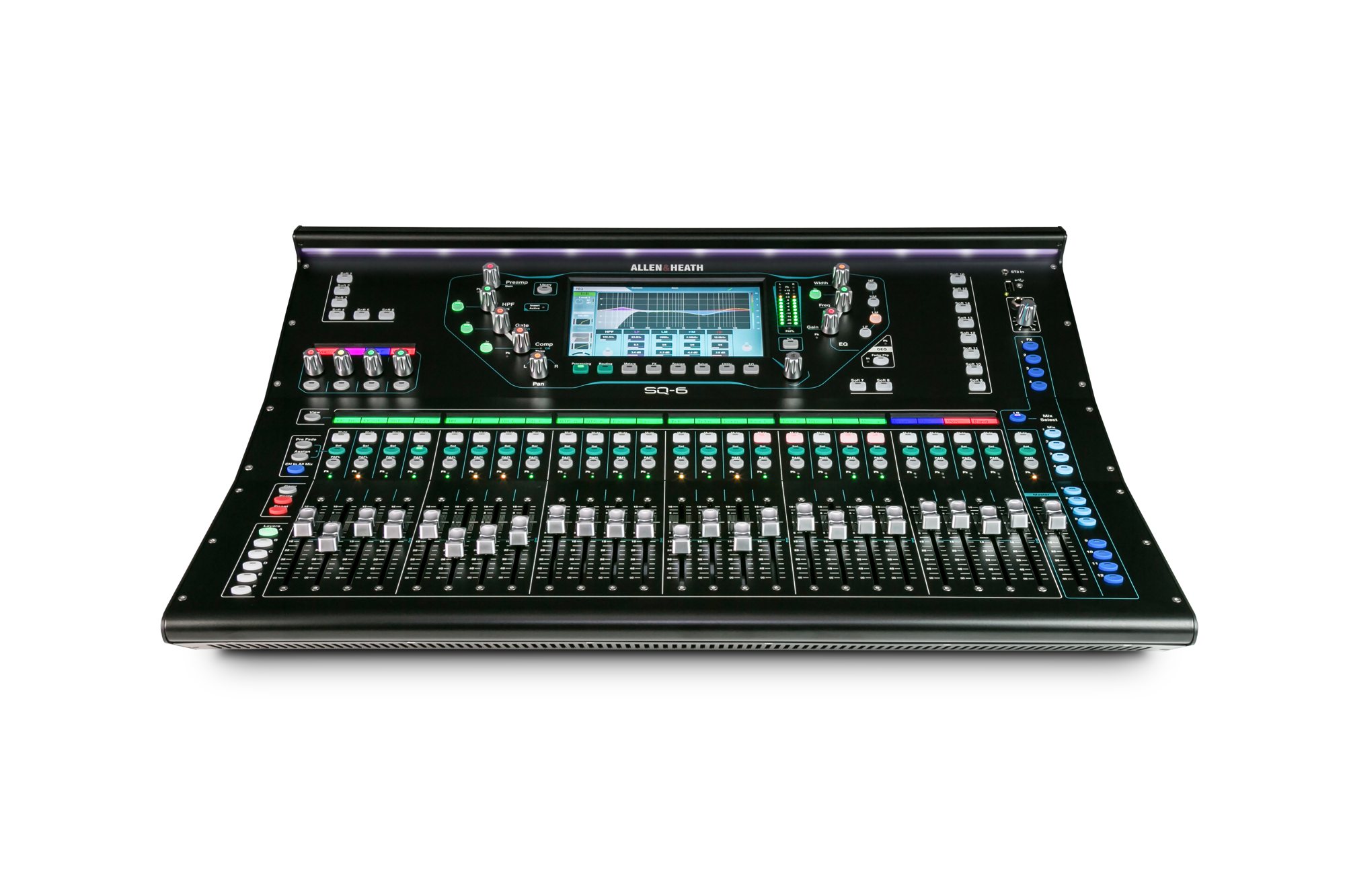

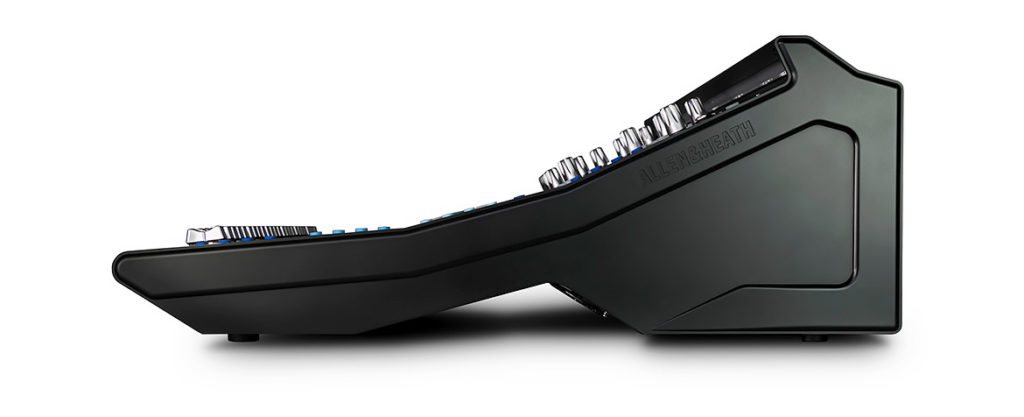

Allen & Heath SQ-6 Digital Mixer

Description

The SQ-6 is the mid-size SQ, with more faders and preamps on the surface so an operator can keep a full worship band in view without paging through layers. It runs the same 48-channel, 96kHz engine as the rest of the SQ family.

Why Churchfront specifies it

For many churches the SQ-6 hits the balance we look for: approachable enough for volunteers, capable enough for a full band with multiple in-ear mixes. It sits on the same Allen & Heath platform our team supports, and in most installs we pair it with a GX4816 stage box and a 64-channel Dante card.

Key features

• 24+1 onboard mic preamps and 16 line outputs
• 24+1 motorised faders across 6 layers
• 16 assignable SoftKeys and 4 assignable soft rotaries
• 7-inch touchscreen
• 96kHz XCVI FPGA processing with under 0.7ms latency
• 48 input channels, 12 stereo mixes plus LR, 3 stereo matrix outputs
• 8 RackExtra FX engines with dedicated sends and returns
• DEEP Processing ready for embedded compressor and preamp models
• SLink port (128×128) for Allen & Heath stage boxes and expanders
• 64×64 I/O port for an audio networking card such as Dante
• 32×32 USB audio interface for recording and livestream feeds

Works with

GX4816, DX168, DX164-W and DX012 expanders over SLink, the ME personal monitoring system, Dante networks through the SQ Dante option card, and the SQ MixPad and SQ4You apps for wireless control.

Learn more from Churchfront

• Inside a Portable Church AVL System · Watch on YouTube
• Patching IN/OUT of your Allen & Heath SQ Console (Churchfront members)

Planning a full system?

This listing is the component. Most churches get the best result when the console, stage boxes, monitoring and network are designed together around the room and the team that runs it. If you would like help putting that system together, our consulting team can walk through it with you, or send us a note.
