Allen & Heath DX164-W Wall-Mount Expander
$2,599.00
A 16-input, 4-output 96kHz expander that mounts in or on a wall, or in a floor pocket, for clean permanent I/O at the stage.
Condition: New
Description

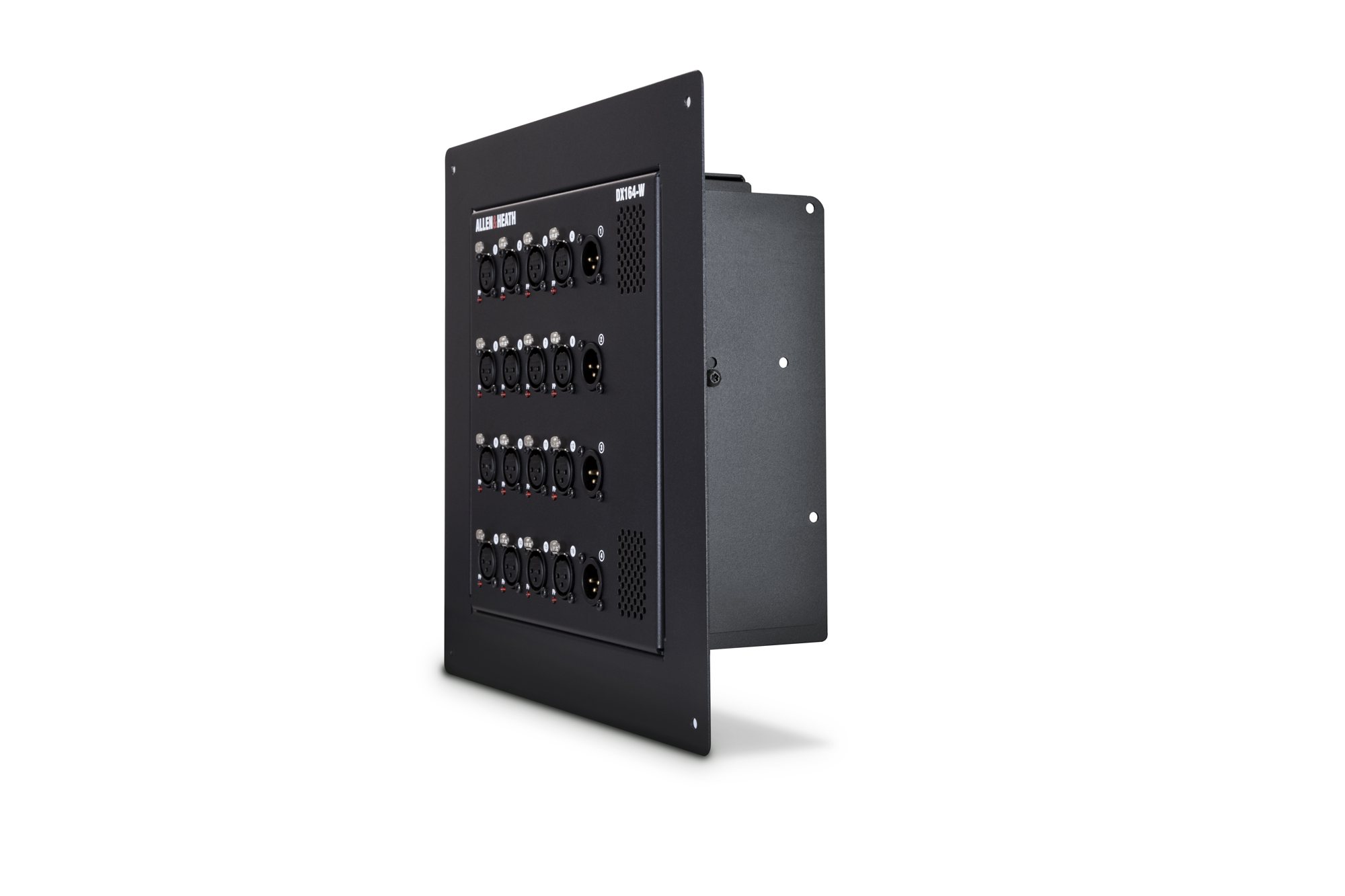

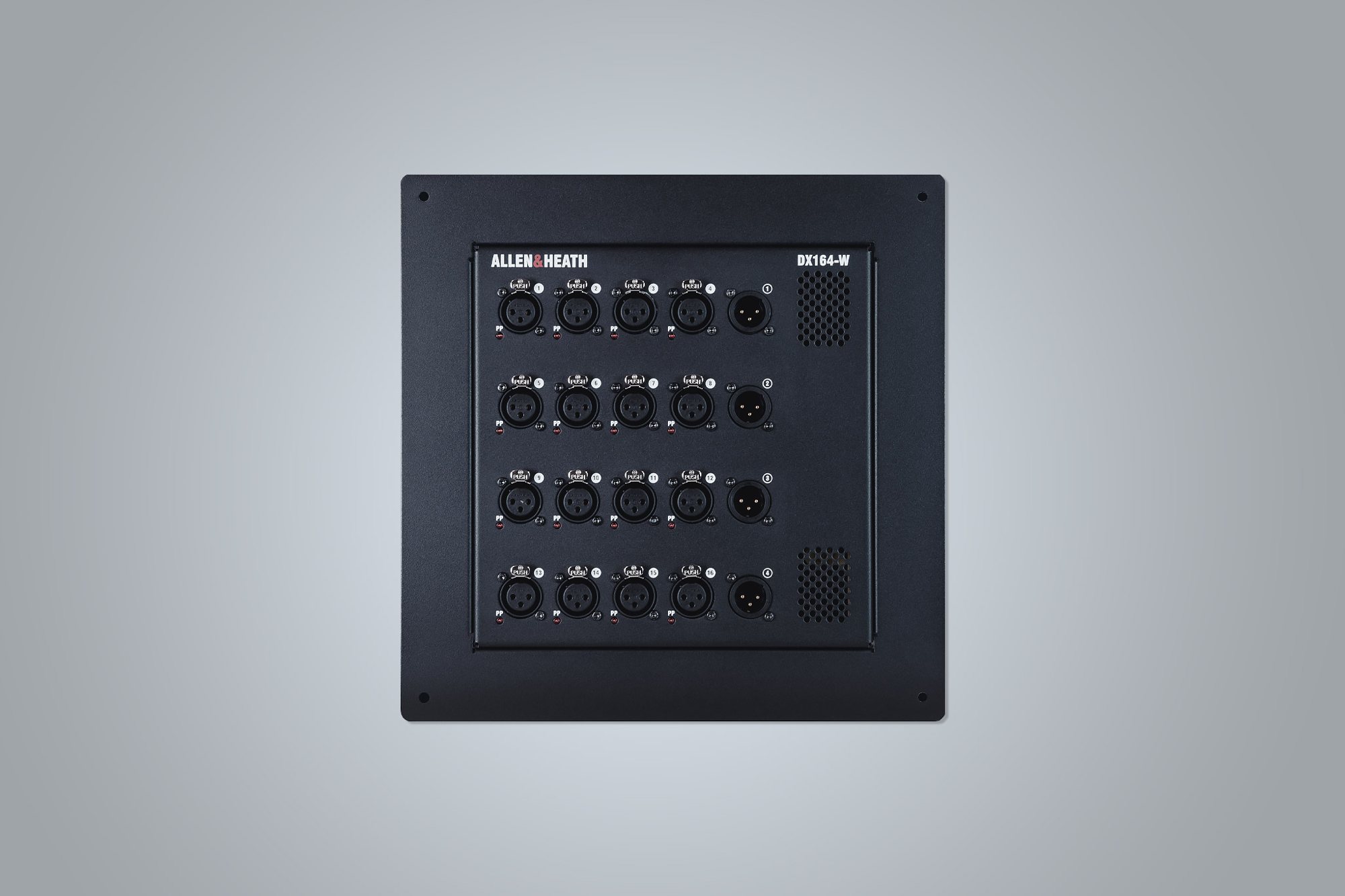

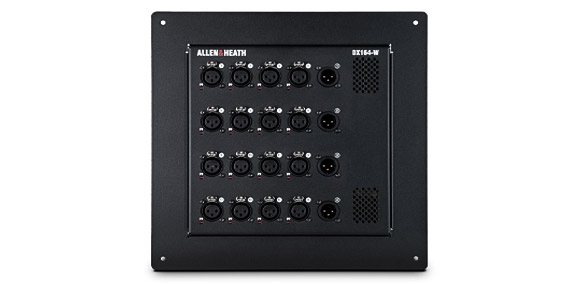

The DX164-W puts 16 mic inputs and 4 line outputs into a wall plate. Its reversible frame mounts in-wall or on-wall, and with custom brackets it fits a standard NEMA box or a stage floor pocket, so stage I/O becomes part of the building.
Why Churchfront specifies it
We use the DX164-W where a church wants permanent, tidy I/O at the stage without a box on the floor. The power inlet can be swapped for a gland module and screw terminals for fixed installation, and a 12V DC backup input adds resilience.
Key features
- 16 mic preamps with +60dB of gain, a -20dB pad and phantom power indicators
- 4 balanced, relay-protected XLR line outputs
- Reversible frame for in-wall or on-wall mounting, adaptable to NEMA boxes and floor pockets
- Up to 100m from the mixer over a single Cat5e cable on a locking etherCON
- Redundant and cascade modes, up to 2 DX expanders per DX port
- IEC inlet replaceable with a gland module, plus a DC 12V backup input
Works with
SQ and SQ+, Avantis, dLive, 96kHz Qu models and AHM processors, directly or through a DX Hub or GX4816.
Planning a full system?
This listing is the component. Most churches get the best result when the console, stage boxes, monitoring and network are designed together around the room and the team that runs it. If you would like help putting that system together, our consulting team can walk through it with you, or send us a note.
Additional information
| Condition | New |
|---|
