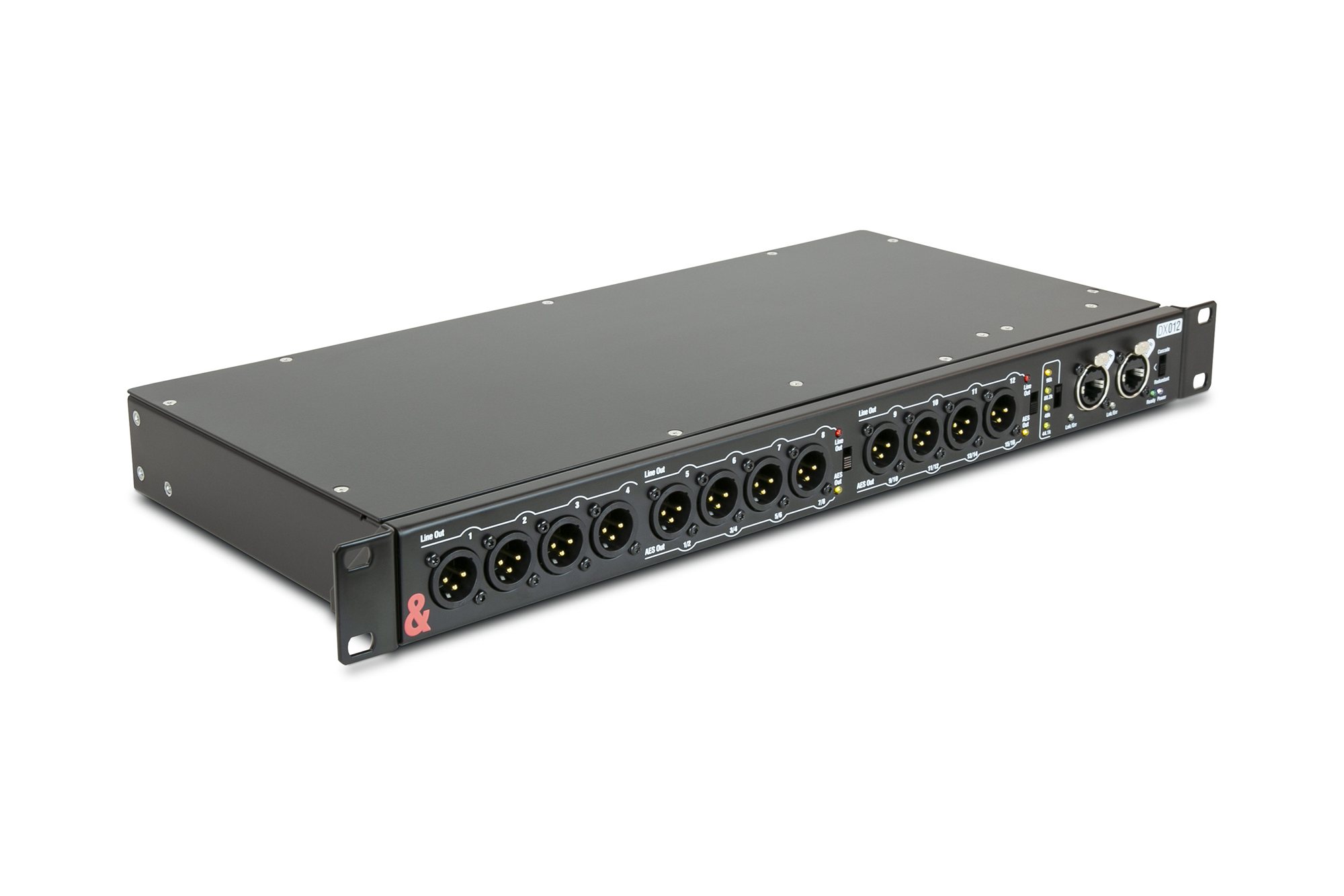

Allen & Heath DX012 12-Output Expander
A 1U, 12-output 96kHz expander with analogue and AES options. The simple way to add outputs for in-ear transmitters and amplifier racks.
Condition: New
Added to your cart. View cart
- Tax-exempt church? Sign in and your approved certificate applies at checkout.
- 30-day returns on unopened gear. Shipping and returns
About this product

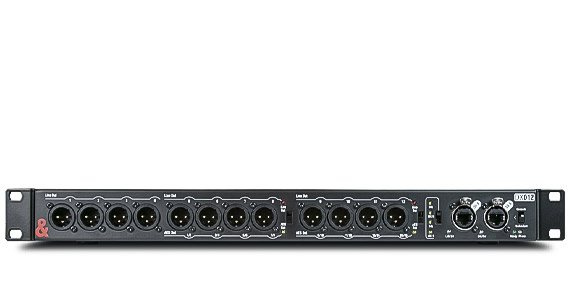

The DX012 adds 12 XLR outputs to the system in a single rack space. Outputs 5 through 12 can switch between analogue and stereo AES digital, so one unit can feed in-ear transmitters, amplifiers and digital devices.
Why Churchfront specifies it
When a church adds wireless in-ear monitors, the stage box often runs out of outputs before the console runs out of mixes. The DX012 is how we solve that: 12 more outputs in the rack, placed right next to the IEM transmitters.
Key features
- 12 XLR outputs: 12 analogue, 8 analogue plus 4 stereo AES, or 4 analogue plus 8 stereo AES
- AES outputs switchable between 44.1, 48, 88.2 and 96kHz
- Integrated rack ears for a 1U 19-inch space
- Up to 100m from the mixer over a single Cat5e cable on a locking etherCON
- Redundant and cascade modes, up to 2 DX expanders per DX port
- Plug-and-play: no configuration, firmware updates handled by the mixer
Works with
SQ and SQ+, Avantis, dLive, 96kHz Qu models and AHM processors, directly or through a DX Hub or GX4816.
Planning a full system?
This listing is the component. Most churches get the best result when the console, stage boxes, monitoring and network are designed together around the room and the team that runs it. If you would like help putting that system together, our consulting team can walk through it with you, or send us a note.
