Allen & Heath ME-1 Personal Monitor Mixer

Description

ME-1 gives each musician control over up to 40 channels of their own monitor mix. Channel names come straight from the console, groups let a player fold the whole drum kit onto one key, and 16 presets recall a mix at the touch of a button.

Why Churchfront specifies it

ME-1 is our preferred personal mixer. When each musician can shape their own mix, the band plays with more confidence, the engineer is free to focus on the room, and the stage gets quieter. We plan one ME-1 per backline musician, plus one or two spares for bigger weekends, and connect them with shielded Ethernet on etherCON.

Key features

• Up to 40 sources on 16 assignable keys, each with level and pan

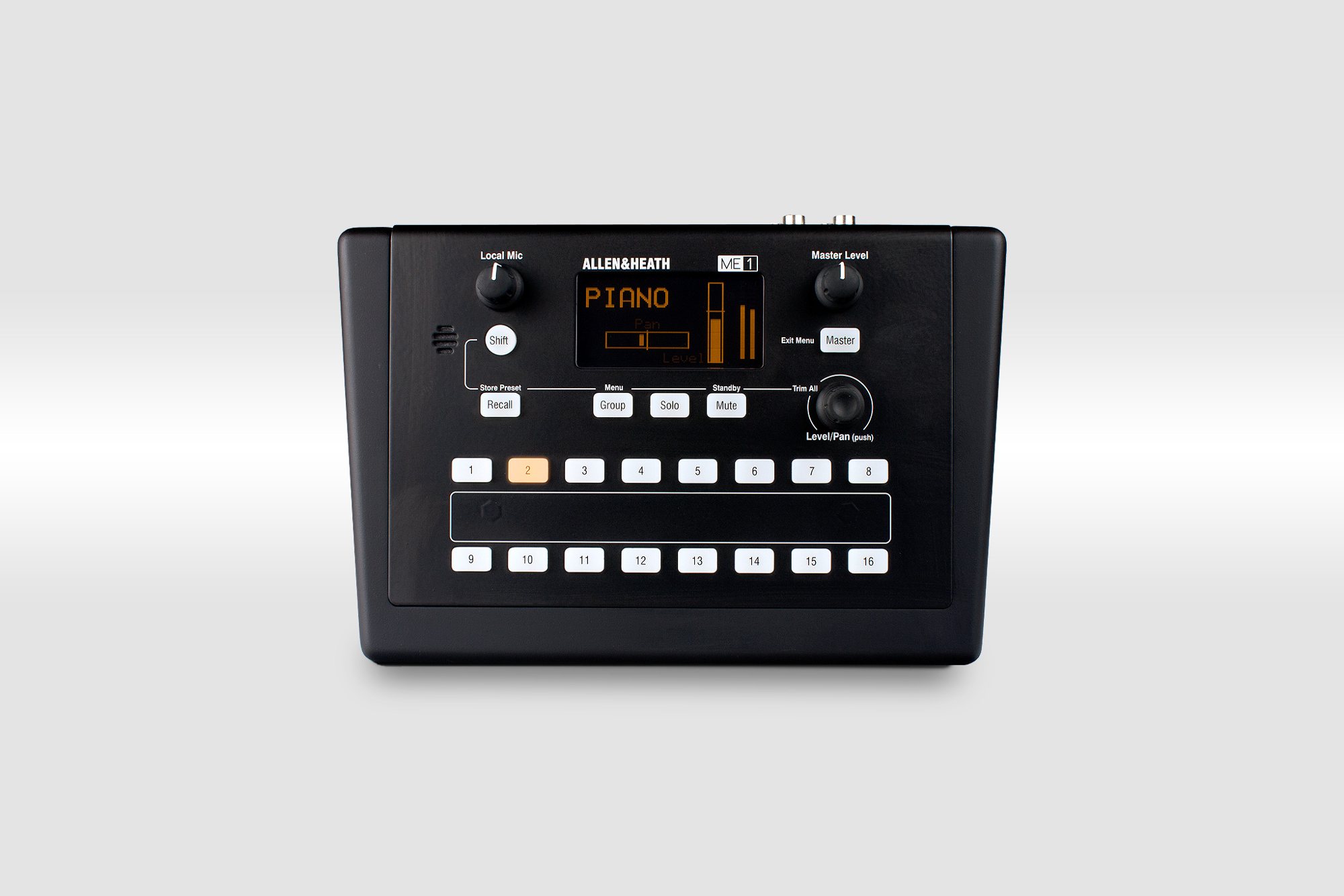

• Dimmable OLED screen showing names, levels, pan and meters
• 16 user presets, saveable to USB and transferable between units
• Groups built on the ME-1 without using buses on the main console
• Master 3-band EQ and an adjustable limiter from -24dB to 0dB
• Top-panel ambient mic to hear the room without removing in-ears
• 1/4-inch and 3.5mm headphone outputs

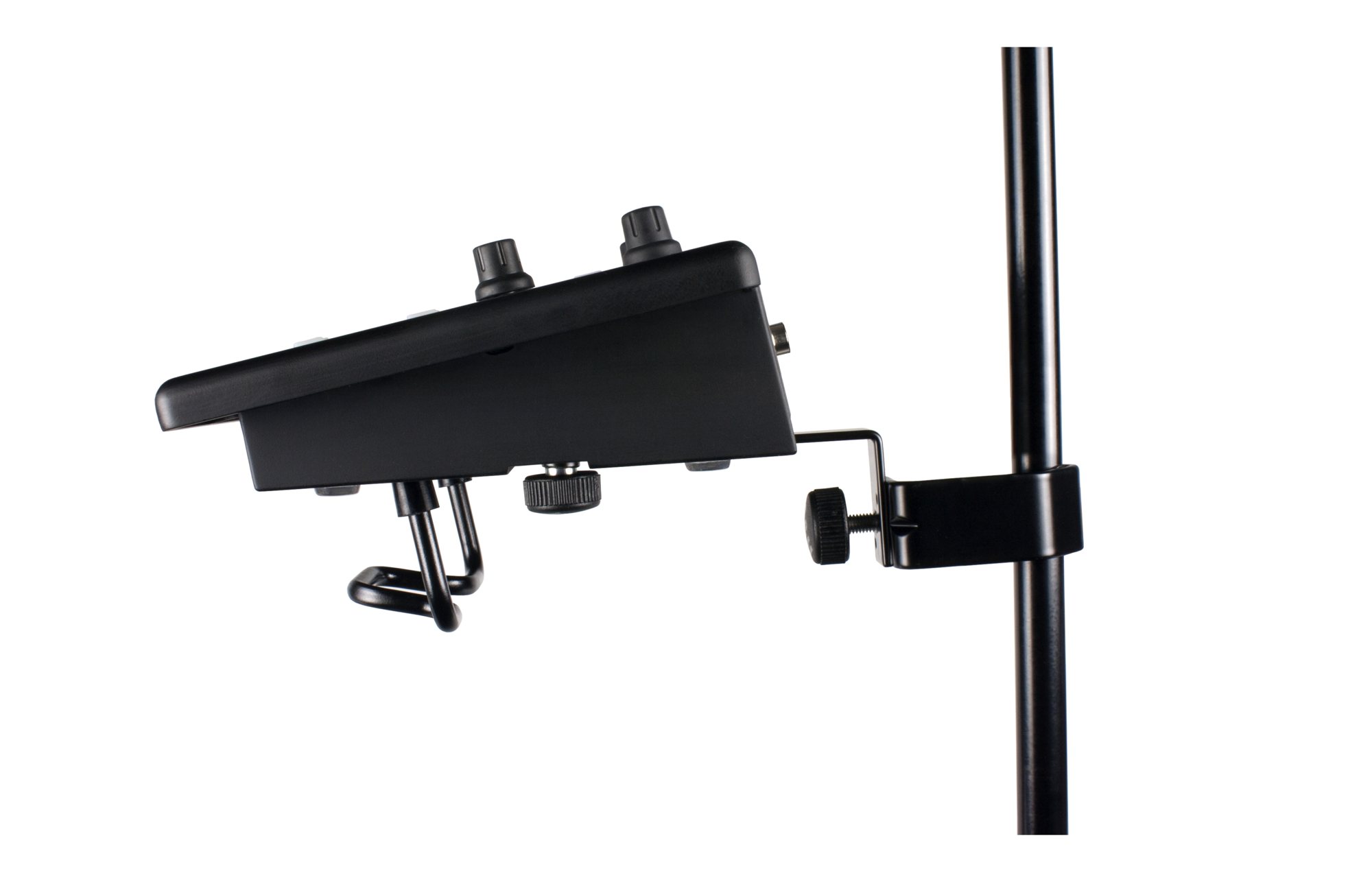

• PoE powered, with headphone hanger and mic stand bracket included
• Drop-in replacement for AVIOM A-16ii units

Works with

dLive, Avantis, SQ and SQ+, and Qu mixers, through an ME-U hub, a GX4816 DX2 port or direct connection, and third-party consoles through an ME-U with an option card.

Learn more from Churchfront

• Allen & Heath ME-1 Personal Mixer | Operator Quick Start (Churchfront members)
• Allen & Heath ME-1 Personal Monitor Mixer | Configuration (Churchfront members)

Planning a full system?

This listing is the component. Most churches get the best result when the console, stage boxes, monitoring and network are designed together around the room and the team that runs it. If you would like help putting that system together, our consulting team can walk through it with you, or send us a note.
